IC Water Sprayer:

• Intercooler Water sprayer system - Preparing for next summer / June already!.

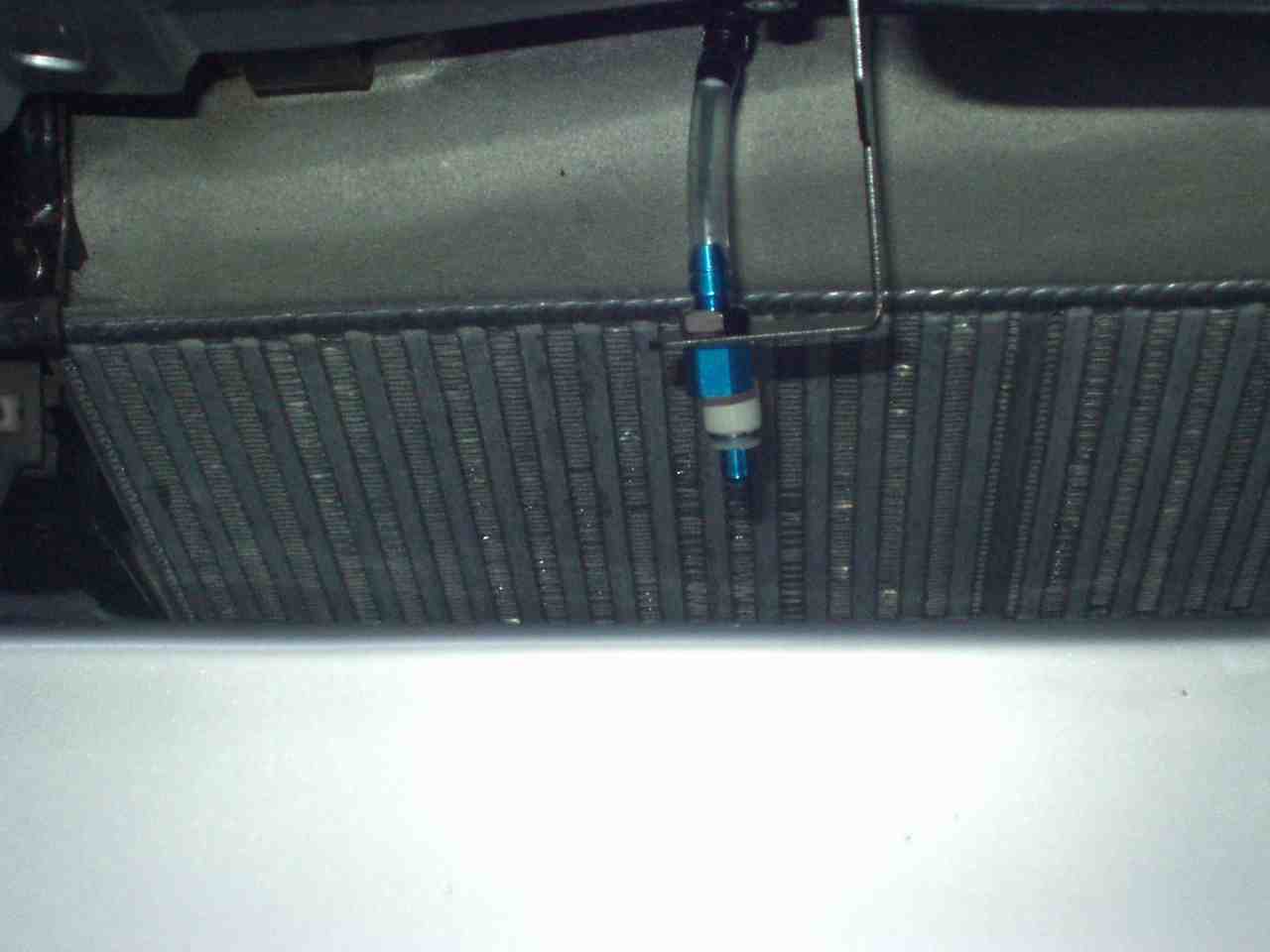

  Status: Installed the sprayer but the controller doesn't like the power its getting or its a POS. Headlamp spray switch works fine and is probably all I need.  Still need to alter the headlamp sprayer relay so I don't have to turn on the headlights to use the sprayer.

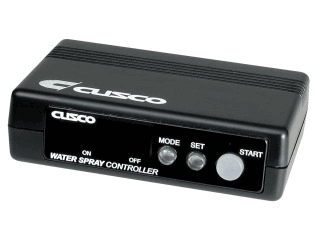

  Cusco/Pivot unit Instructions
  • Plan on using the GLL headlight water pump and wire to the relay. I'd also like to rig a extra water tank in the passenger compartment somewhere, drivers  rear quarter panel or under 2+2 rear seats?
  • Or get the Pivot version: http://store.racinglab.com/waspnokit.html http://store.racinglab.com/piwaspcokit.html
  • 060205 - Pivot version is discontinued, You can still get the cusco version
    • http://www.i-m-racing.com/cuinspnokit.html (this all you really need!)
    • http://www.i-m-racing.com/cuinspun.html (does not come with spray nozzle!)

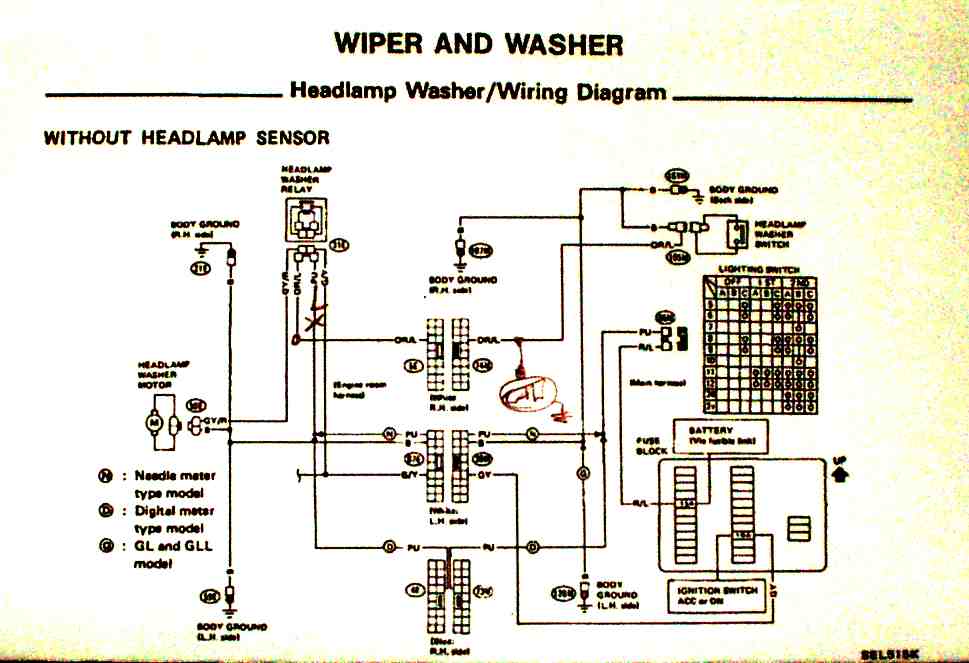

• Ok Here is the headlamp washer wiring on z31 GLL.
  • Need to cut and tie the purple wire to the G/Y wire on the relay side.
  • Washer controller signal ties to OR/L wire and to ground.
  • See Pivot Water Spray Control Doc
