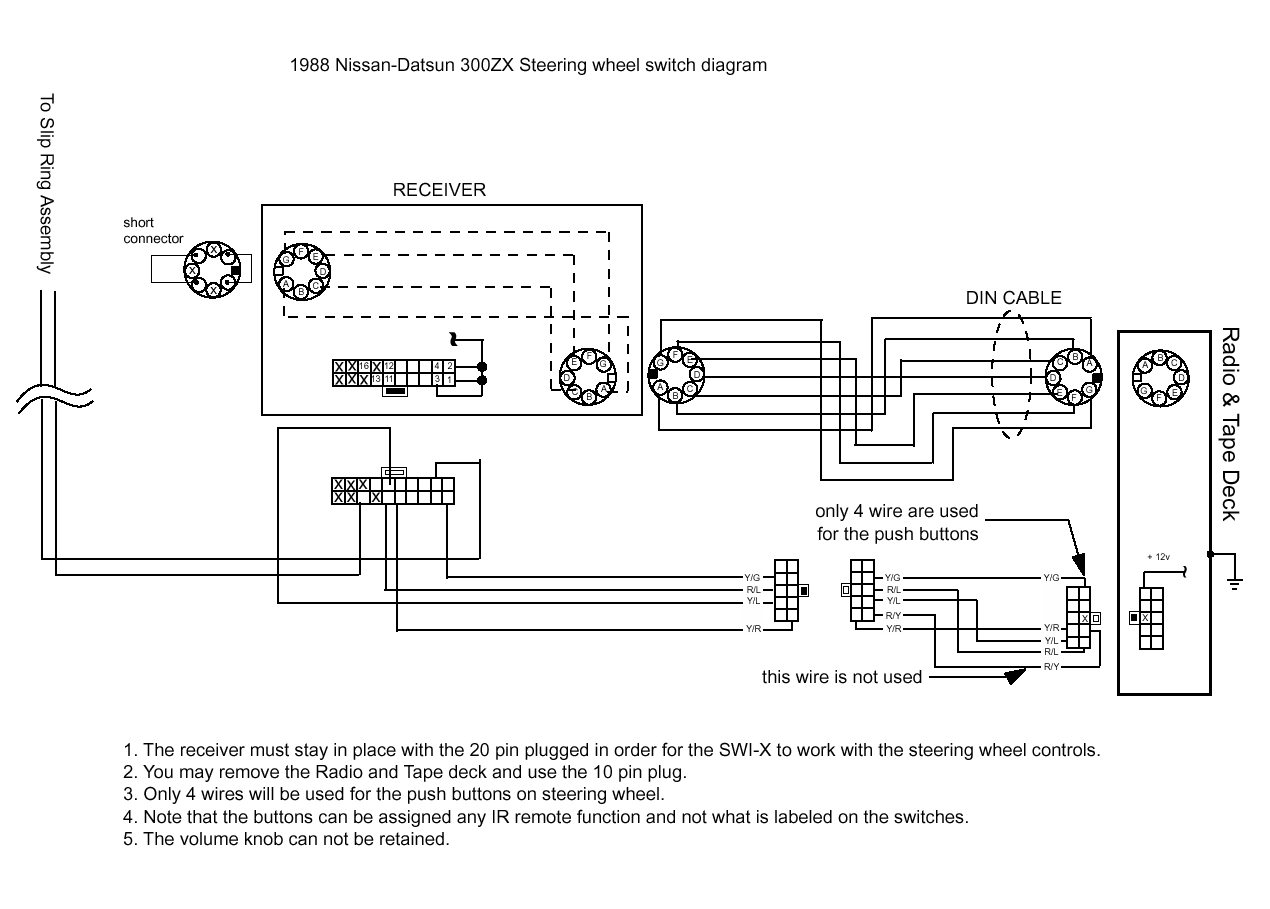

this diagram the "this wire is not used" note is incorrect. It is
used, the Y/G switched power wire is not used.
The Y/R,Y/L, R/L, R/Y are wired to separate resistors and tied together as a single input to the SWI adapter.
PAC SWI-X for IR remote alternative:
