Modifications Completed: 1987 300ZX 2+2 Turbo GLL

Updated 08/29/03

• 1988SS Front Spoiler Installation

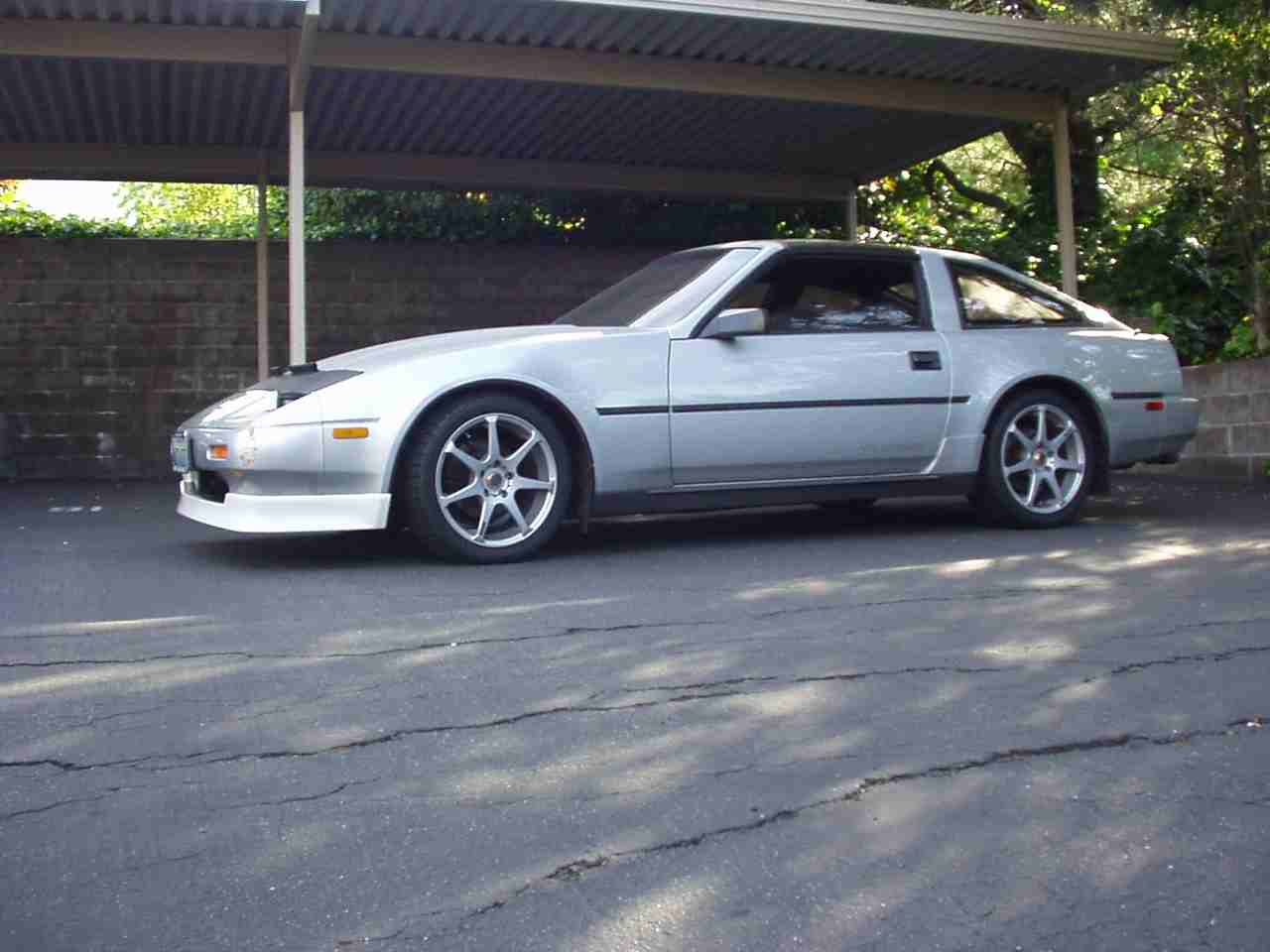

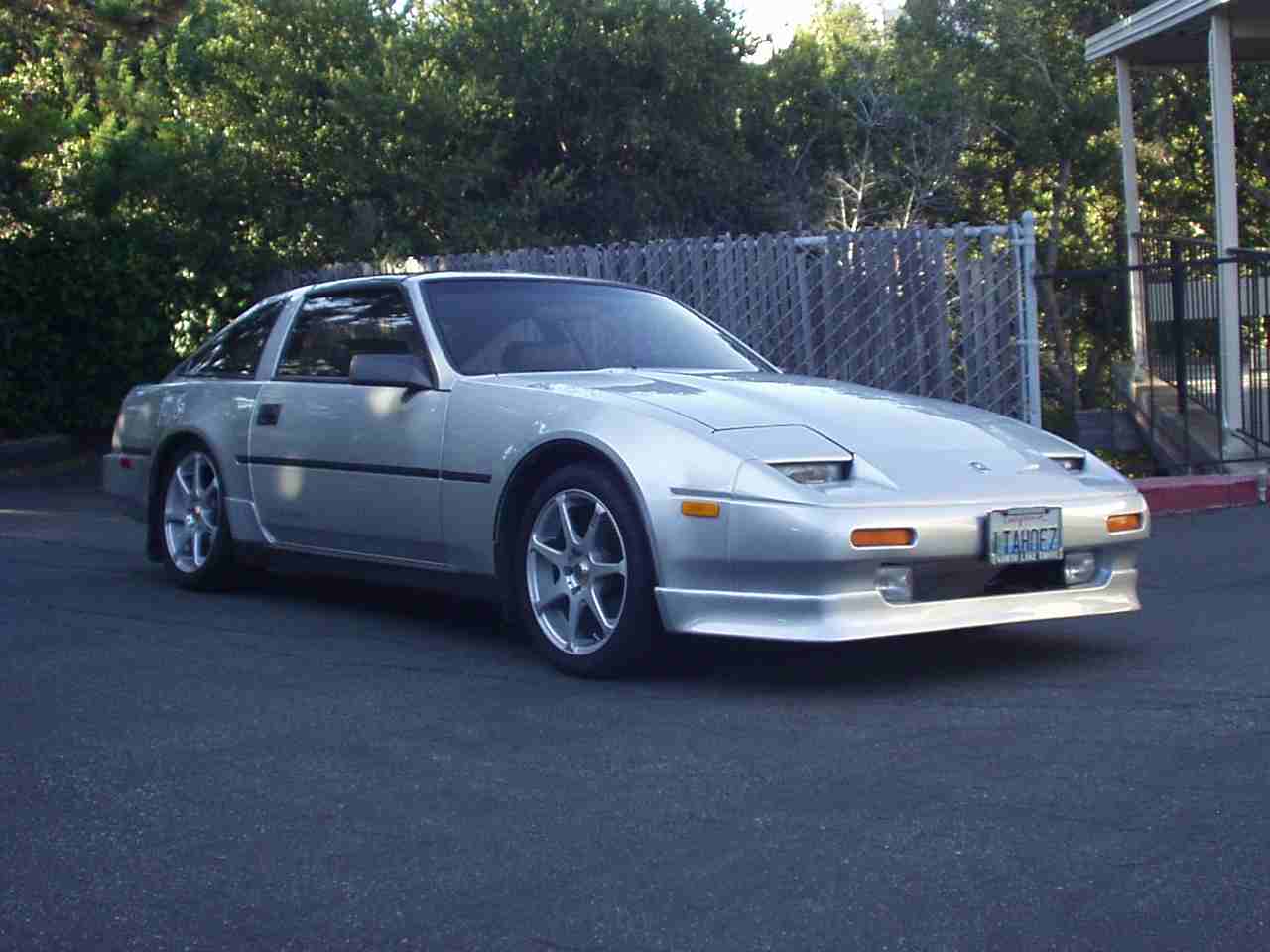

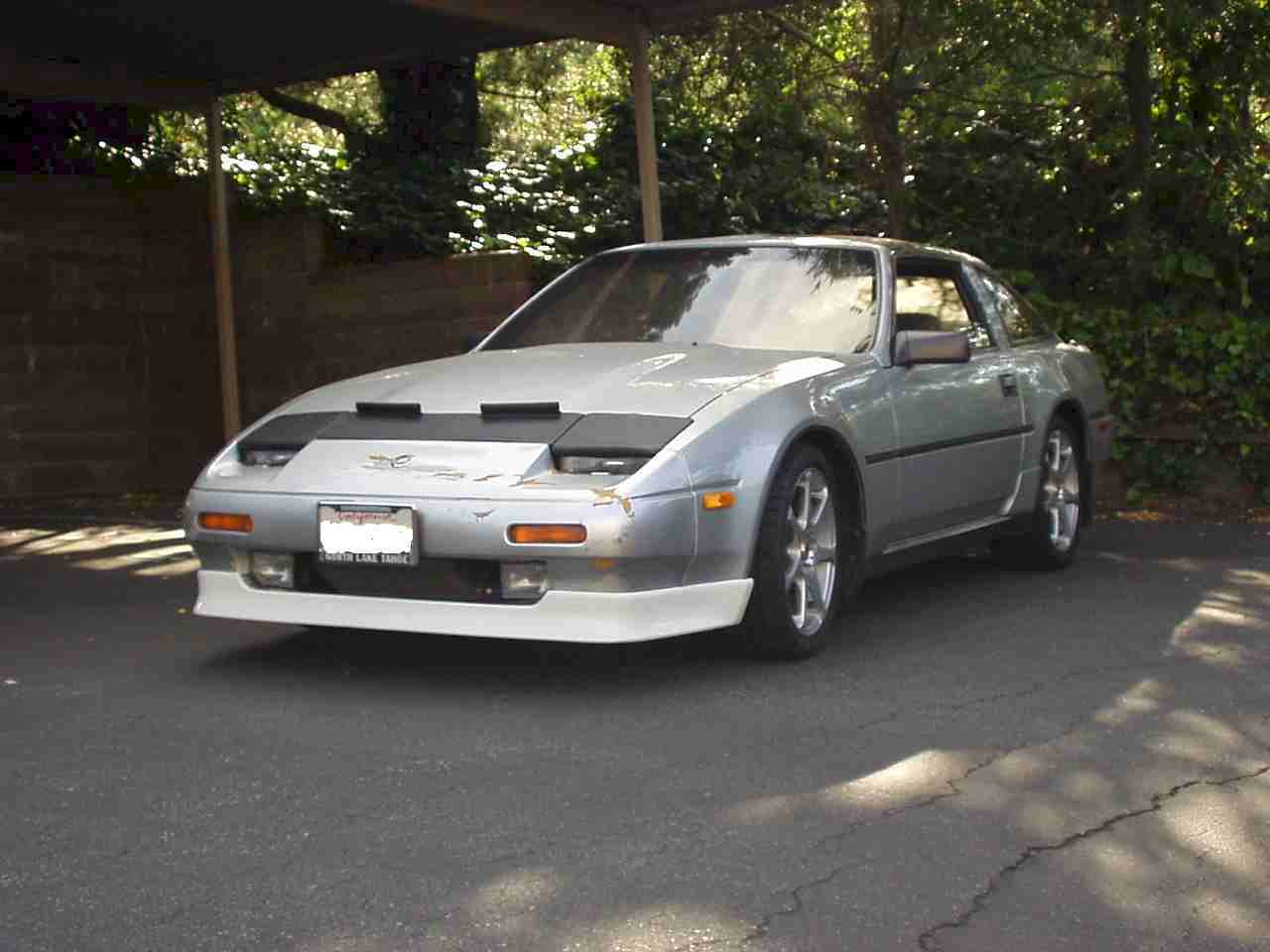

  082903 - Paint done. Well a lot has happened since then But here is where I'm at now:





  052303 - Have it on. It still needs some final fitting. Painting it real soon now.






Parts and Installation Planning

I now have all the bits now. I have to get it on there and I need to get it painted.
I will have it painted matching Silver ....

1988ss Air Dam - 96010-25P00

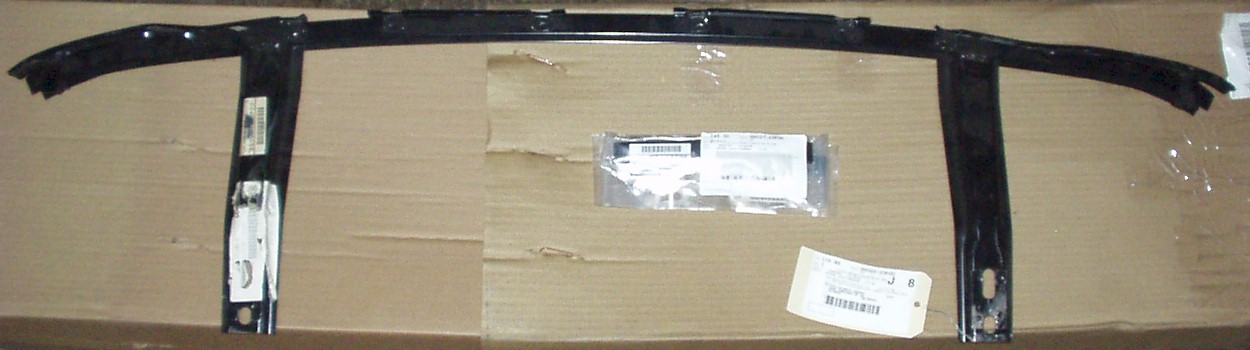

I now have the reinforcement bar and brackets! 96020-23P00

• 1988ss Air Dam Parts List
  1 96010-25P00 Spoiler Kit-fro  (NLA) I Found a new one! Thank you Zgods!
  1 96026-23P00 Retainer-frt Ai
  1 96027-23P00 Retainer-front  (same as 96026 reversed)
  1 96020-23P00 Guide Air,lower
  1 62688-07P00 Reinforce-front
  1 62689-07P00 Reinforce-front
  4 08117-0252G Bolt
  16 08911-1062G Nut

• 88 Front Spoiler Fiche Picture

• Have new fascia from MSA
  However they can't supply the fascia for the GLL headlight washers.  I probably will return it and have my old one refurbished.
